80/120迷你ADSS 2-12芯光纤电缆ASU迷你adss

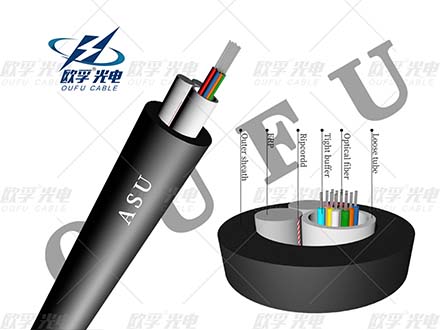

G.652D Aerial Self-Supported ASU Fiber Optic Cable has a loose tube structure and water-resistant gel compound to provide crucial protection for the fiber. Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel fiber reinforced plastic(FRP) elements are placed on the two sides.The cable is covered with a single PE outer sheath. It is especially suitable for installation in aerial for long-distance communication.

Operating :-40C to 70C
Storage:-50°C to 70C
Installation :-30C to 70
Bending Radius:
Static 10D
Dynamic 20D

Proven all-dielectric loose tube construction lmmune to electromagnetic fields Fast,

one-step installation Integrated FRP strength elementsRound cable profiles minimize wind and ice loading
FRP Filled element make cable hight tension
Tube filling gel
Loose tube stranded
PE sheath outdoor cable
Anti water yean protect cable from water

The 2~24 Fibers ASU CableAS80 and AS120) is a Self-Supported Optical Cable, lt was developed toprovide the connection between devices, being indicated for installation in urban and rural networksin spans of 80m or 120m. Because it is self-supported and totally dielectric, it has FRP strengthmember as a traction element, thus avoiding electrical discharges in the networks. lt is easy to handleand install, eliminating the need to use strings or grounding.
t is mainly used in the communication route of overhead high voltage transmission system, and canalso be used in the communication line under the environment such as lightning zone and longdistance overhead line.
ompared with the stranded ADSS 光纤电缆, This 光纤电缆 can not only save the use ofimported aramid yarn, but also reduce the manufacturing cost due to the reduction of the overalstructure size. Compared with the common 150-meter span ADSS-24 光纤电缆 , the price ofthe This cable of the same specification can be reduced by 20% or 更多.

Q1：你是制造商吗？

A1: 是的。我们是一家有15年历史的制造商。我们直接从工厂提供最优惠的价格。

Q2：您可以在这些产品上贴上我的品牌名称 (徽标) 吗？

A2: 是的!我们提供专业的OEM服务。我们的工厂可以免费批量订单的logo费用。

Q3：你接受小订单吗？

A3: 是的，总是有小订单。我们支持客户的新项目，因为我们知道即使是小订单的伟大业务起源。

Q4：您能否为我们提供更多的产品，以帮助我们节省更多的运输成本？

A4: 当然。OPGW电缆，ADSS电缆，ACSR电缆，FTTH引入电缆，室外光纤电缆，室内光纤电缆，光纤电缆配件，跳线，尾纤和吹气光纤电缆是我们的主要产品。
